Audiomatica Clio Pocket

Clio Pocket is a powerful but lightweight portable measurement system.

The system is composed of multi-platform Clio Pocket software, Clio CP-01 Audio Interface hardware plus accessories.

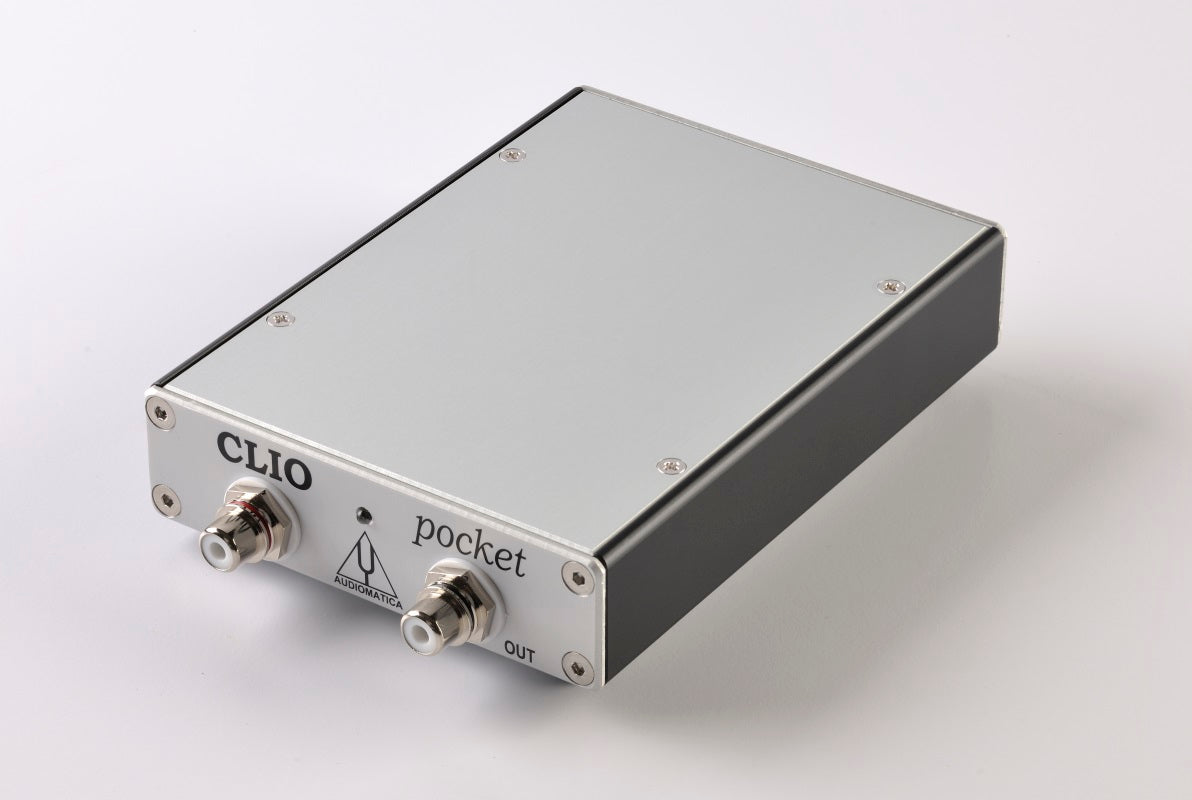

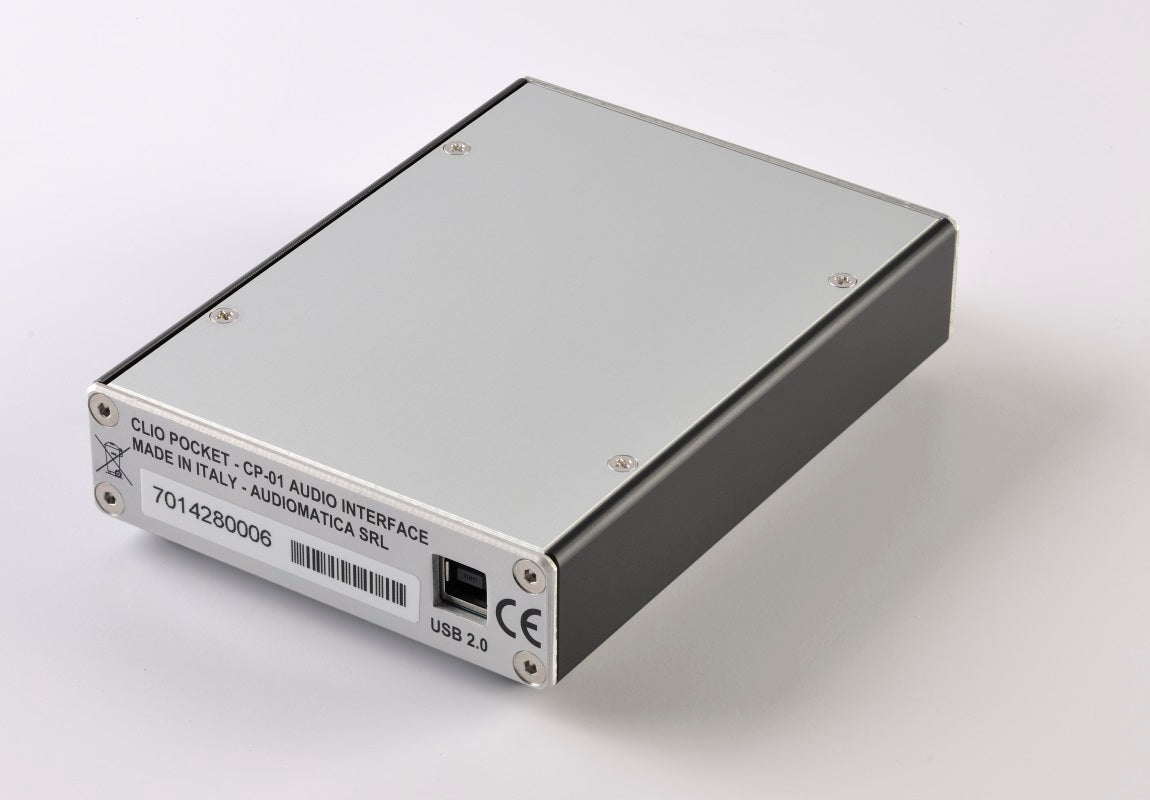

The Clio CP-01 Audio Interface uses an USB 2.0 connection for maximum portability and compatibility with current and future computer hardware architectures.

TECHNICAL SPECIFICATIONS

CP-01 AUDIO INTERFACE

GENERATOR24 Bit sigma-delta D/A ConverterFrequency range:1Hz-45kHzFrequency accuracy:better than 0.01%Frequency resolution:0.01HzOutput impedance:150OhmMax output level (Sine):13dBu (3.46Vrms)Attenuation:0.1 dB steps to full muteTHD+Noise(Sine):0,008%AC ANALYZER24 bit sigma-delta A/D ConverterInput range:+40 ÷ -40dBVMax input acceptance:+40dBV (283Vpp)Input impedance:64kOhm (5.6kOhm mic)Phantom power supply:8.2VDC ANALYZER12 bit A/D ConverterInput range:± 6.5VMISCELLANEOUSSampling frequencies:96kHz and 48kHzConnections:analog RCA in and outDigital connection:USB 2.0 portPower supply:USB powered (480 mA)Dimensions (cm):9(w)x12(d)x2.5(h)Weight:0.3 kg

MIC-02 MICROPHONE

TYPECondenser ElectretAccuracy (direct field)±1 dB 20Hz÷10KHz, ±2 dB 10÷20KHzMaximum level130 dB SPLSensitivity (average)13mV/PaDimensions8mm diameter, 12 cm long

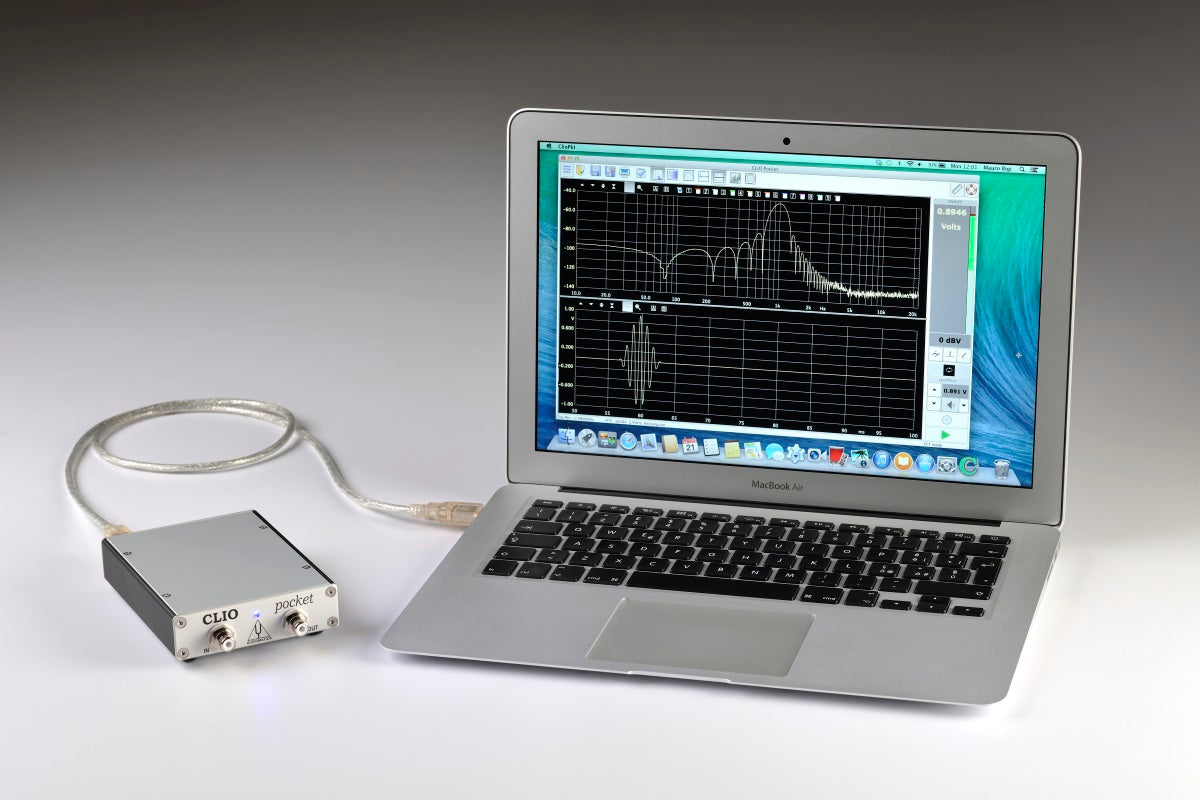

The Clio Pocket software has been designed with a multi-platform engine which allows the software to run under Windows and OSX.

CLIO POCKET SOFTWARE

Clio Pocket software sports a new redesigned interface with modern and easy to use feel.

Clio Pocket has a powerful set of features:

– Self calibration of Clio CP-01 hardware

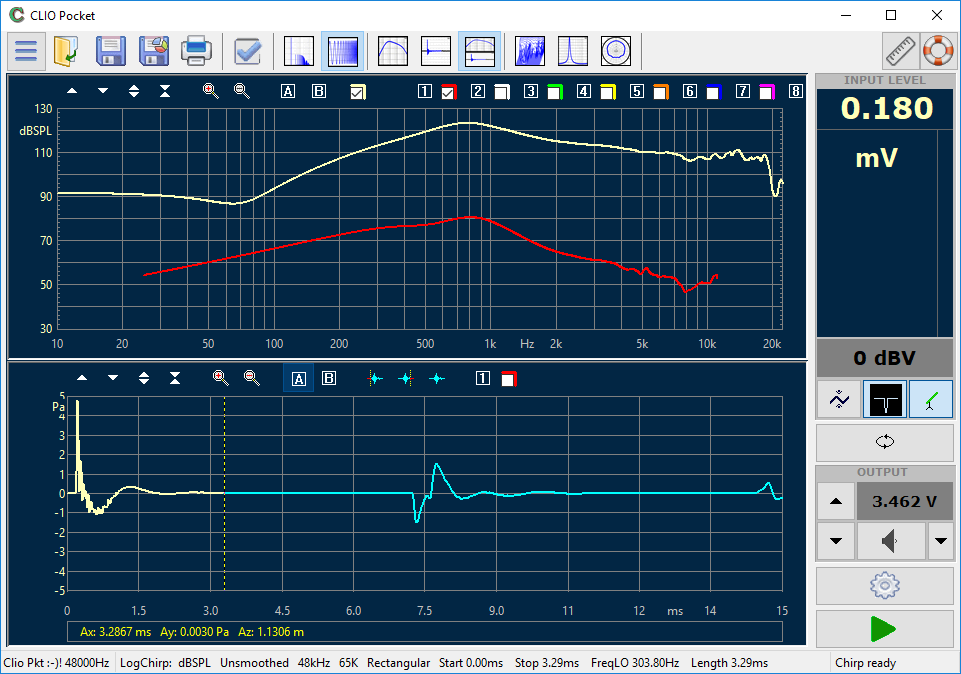

– Impulse Response analysis using LogChirp stimulus:  possible application are anechoic frequency response measurement of  transducers, impedance measurements, distortion measurements

– FFT analysis with powerful trigger functions

– RLC meter with component selection functions

– Thiele and Small parameters calculation with Rdc reading

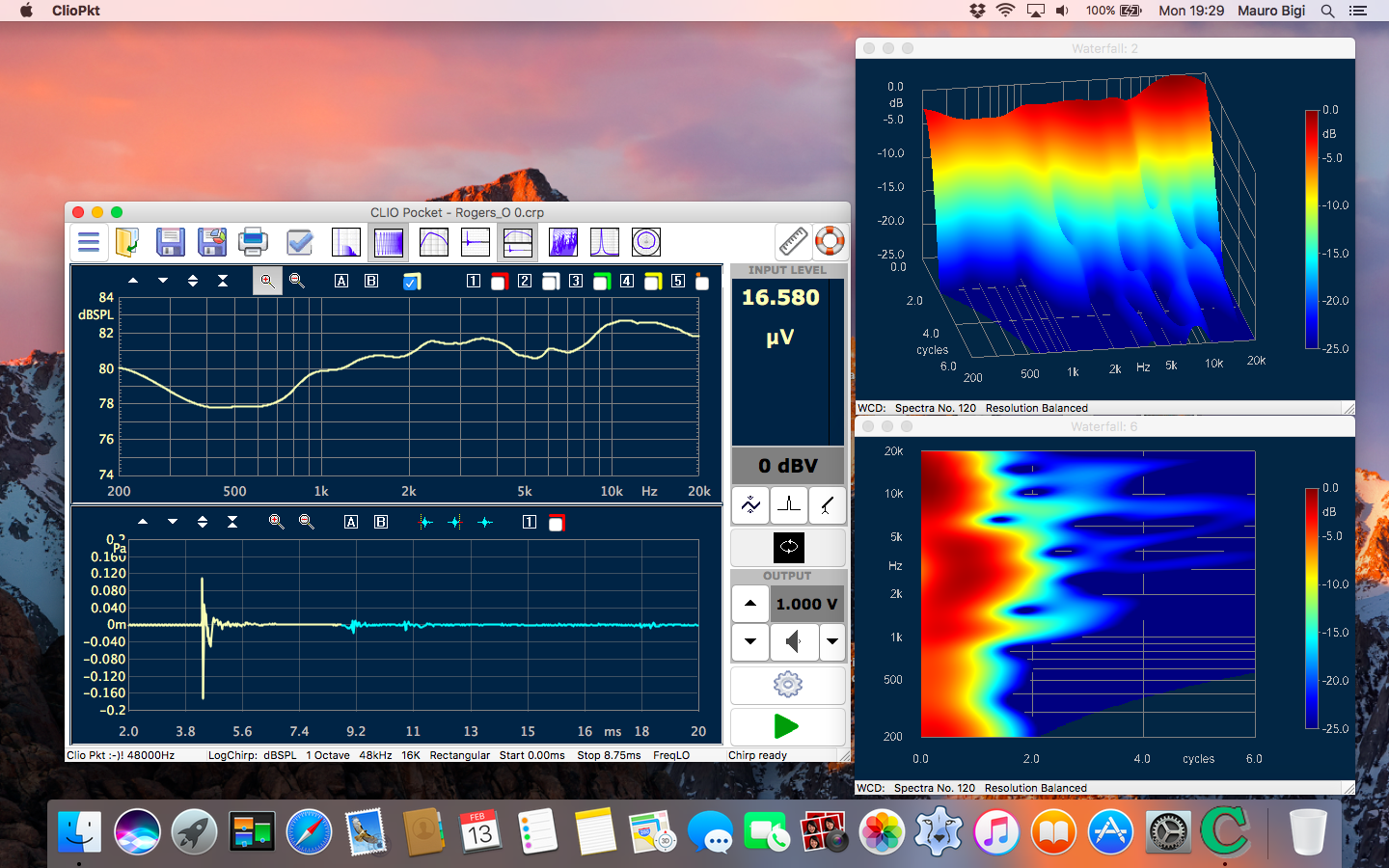

– Waterfall CSD and Cycle Wavelet analysis

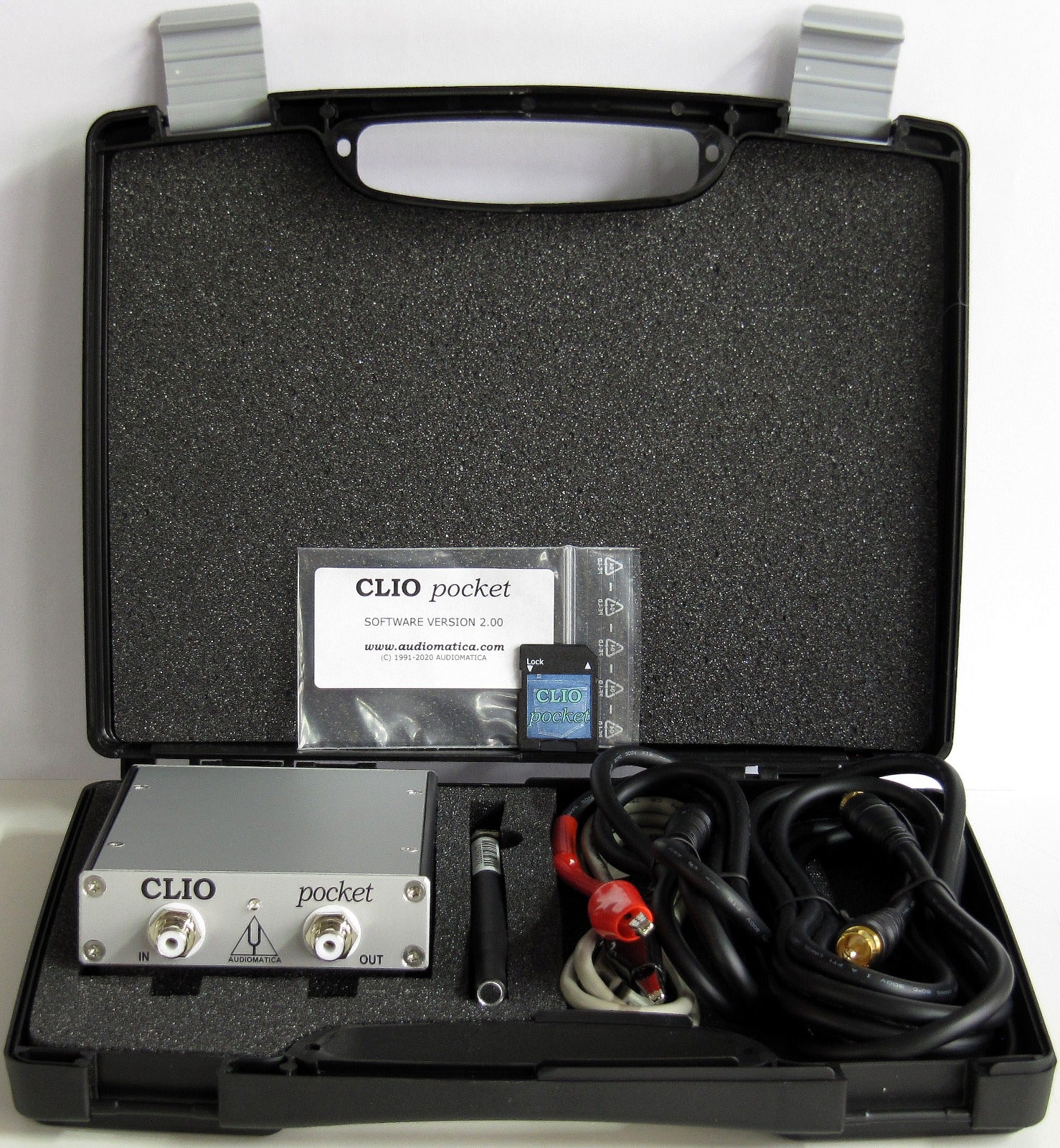

Clio Pocket system is supplied complete with  accessories to start to get electro-acustics measurements on the go or  in the laboratory, inside the box you find:

– The CP-01 audio interface
– The Clio Pocket SD card with software and drivers
– The microphone MIC-02
– One USB 2.0 cable
– One RCA to RCA 2.7m long microphone cable
– One RCA to alligators impedance cable
