Monacor DT-352NF, 1" dome diskant
Monacor DT-352NF, 1" dome diskant
Ordinarie pris
979,00 SEK
Ordinarie pris
Försäljningspris
979,00 SEK
Skatter ingår.
Frakt beräknas i kassan.
Kvantitet
Det gick inte att ladda hämtningstillgänglighet

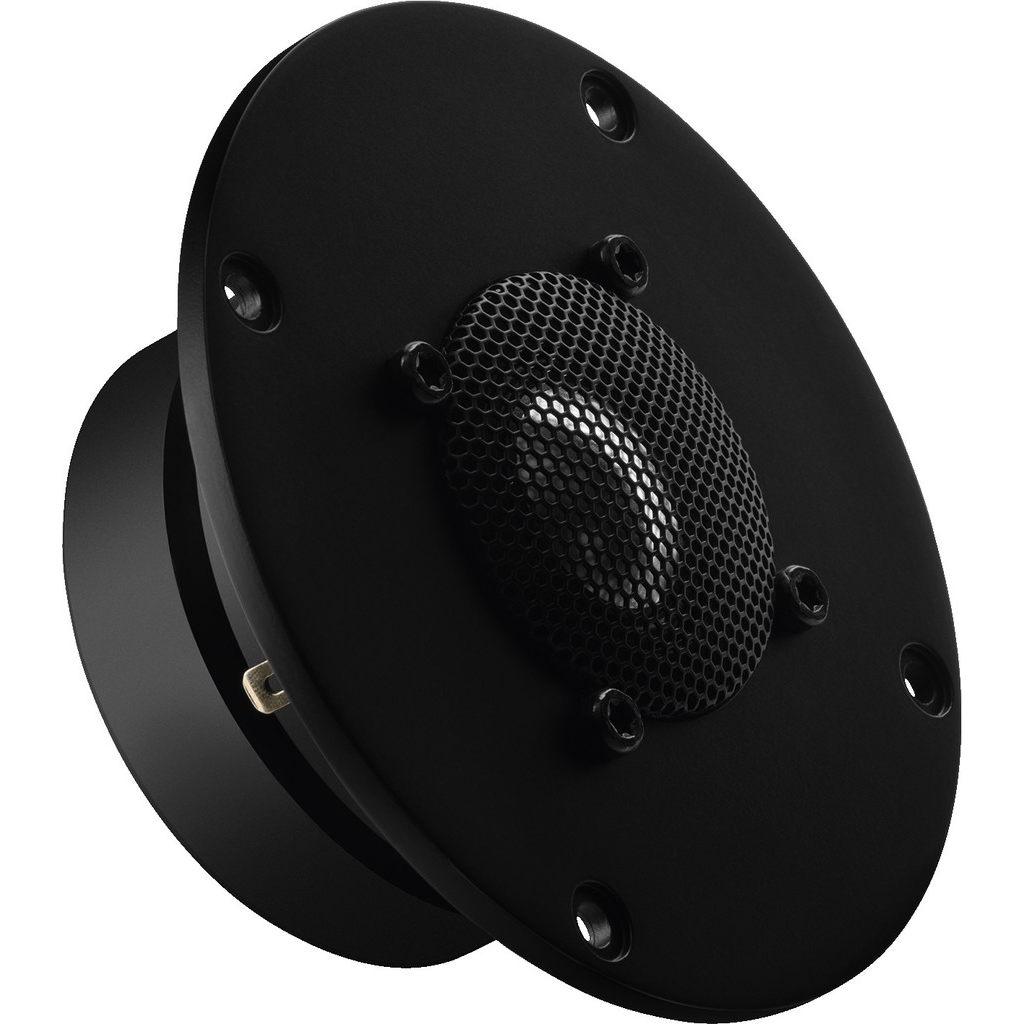

Hi-fi dome tweeter, 80 W, 8 ohm
- 25 mm (1") metal dome, finest resolution of the high frequency range
- No ferrofluid in the air gap of the drive system
- Special light metal alloy without resonance behaviour typical for metal
- Double magnet system with drilled pole core
- Damped coupling volume for a low resonant frequency
- For use with a crossover frequency from 1,500 Hz on via 18 dB filter
- Very wide radiation range, goes beyond 25 kHz
HOBBY HiFi 06/2018
"En bästa pris-prestanda-rekommendation: Med DT-352NF ger MONACOR en enastående dome-diskant som perfekt uppfyller alla krav. Jämfört med ljudkvaliteten är priset mycket mer attraktivt än väntat."
| TEKNISK DATA: | |
| Impedance (Z) | 8 ohm |
| Transmission method | - |

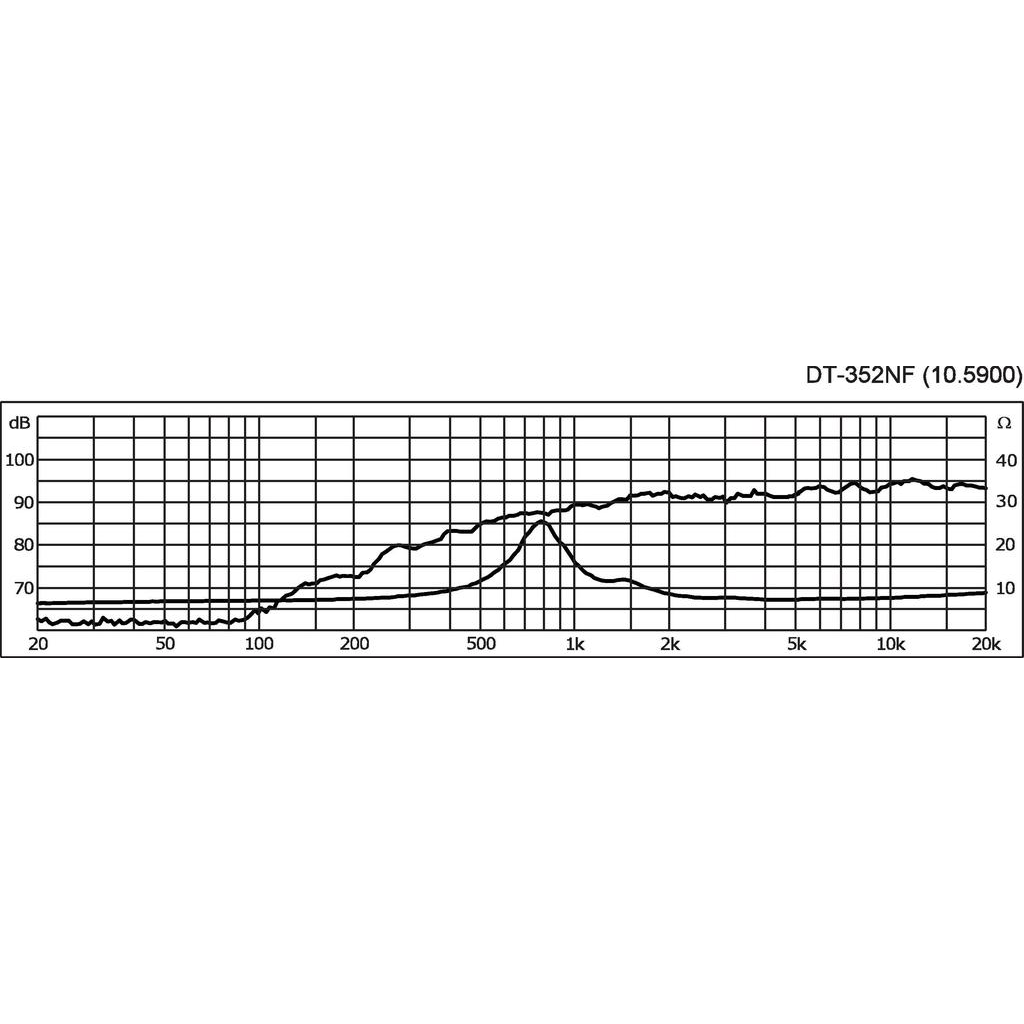

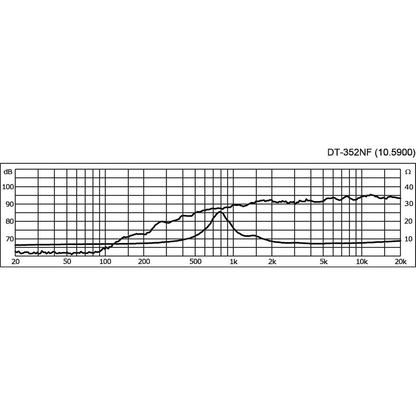

| Frequency range | fx-25,000 Hz |
| Resonant frequency (fs) | 800 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,000 Hz/1,500 Hz (18 dB) |
| Power rating | 80 W |
| Peak music power output | 150 W |
| Sensitivity | 91 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | - |
| Moving mass (Mms) | - |
| Mech. Q factor (Qms) | - |
| Electr. Q factor (Qes) | - |
| Total Q factor (Qts) | - |
| Equivalent volume (Vas) | - |
| DC resistance (Re) | - |
| Force factor (BxL) | - |
| Voice coil induct. (Le) | - |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | - |
| Linear excursion (XMAX) | - |
| Eff. cone area (Sd) | - |
| Magnet weight | - |

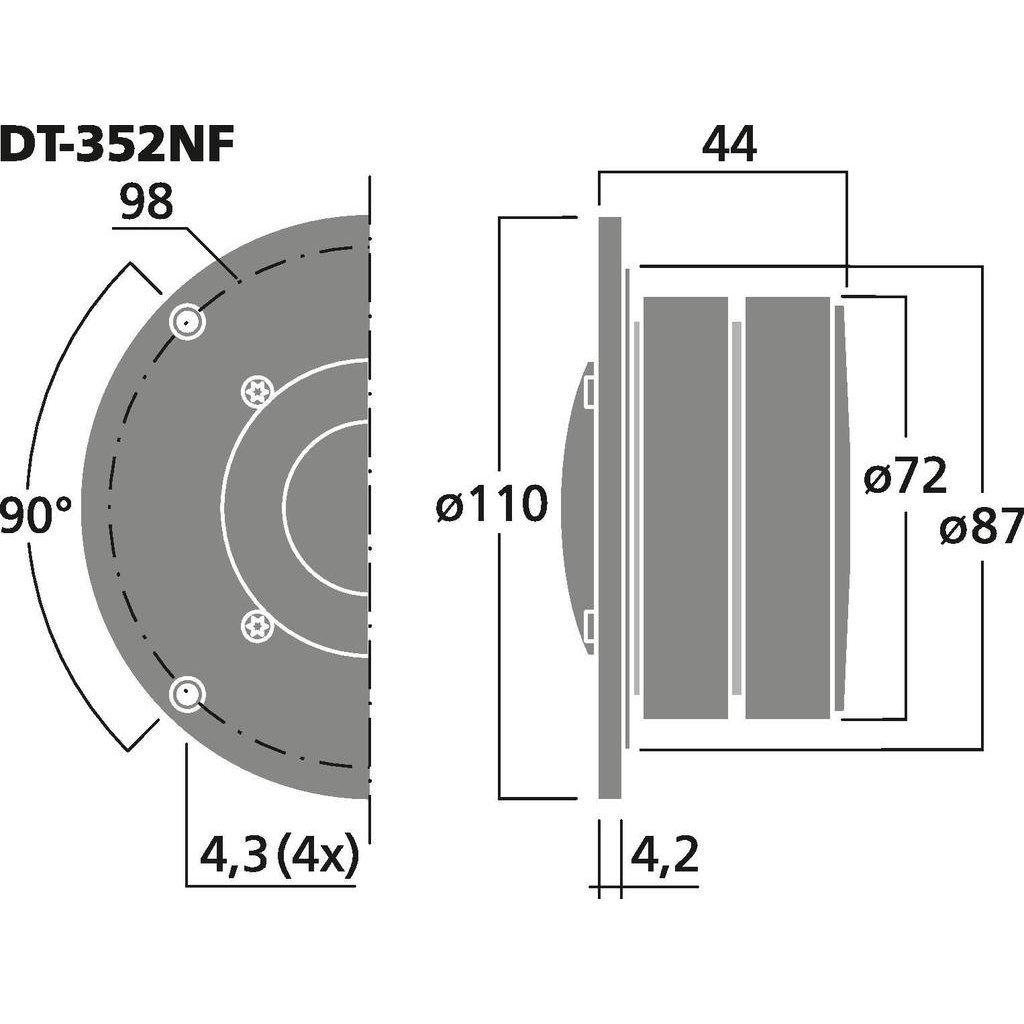

| Magnet diameter | Ø 72 mm |
| Mounting cutout | Ø 87 mm |
| Mounting depth | 42 mm |
| Mounting hole diameter | Ø 98 mm |
| Hole spacing X-axis | 69.3 mm |
| Hole spacing Y-axis | 69.3 mm |
| Dimensions | Ø 110 x 46 mm |
| Outside diameter | Ø 110 mm |
| Width | Ø 110 mm |
| Height | - |
| Depth | 46 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.77 kg |
| Packing unit | 1 |
| Type of speaker | - |
