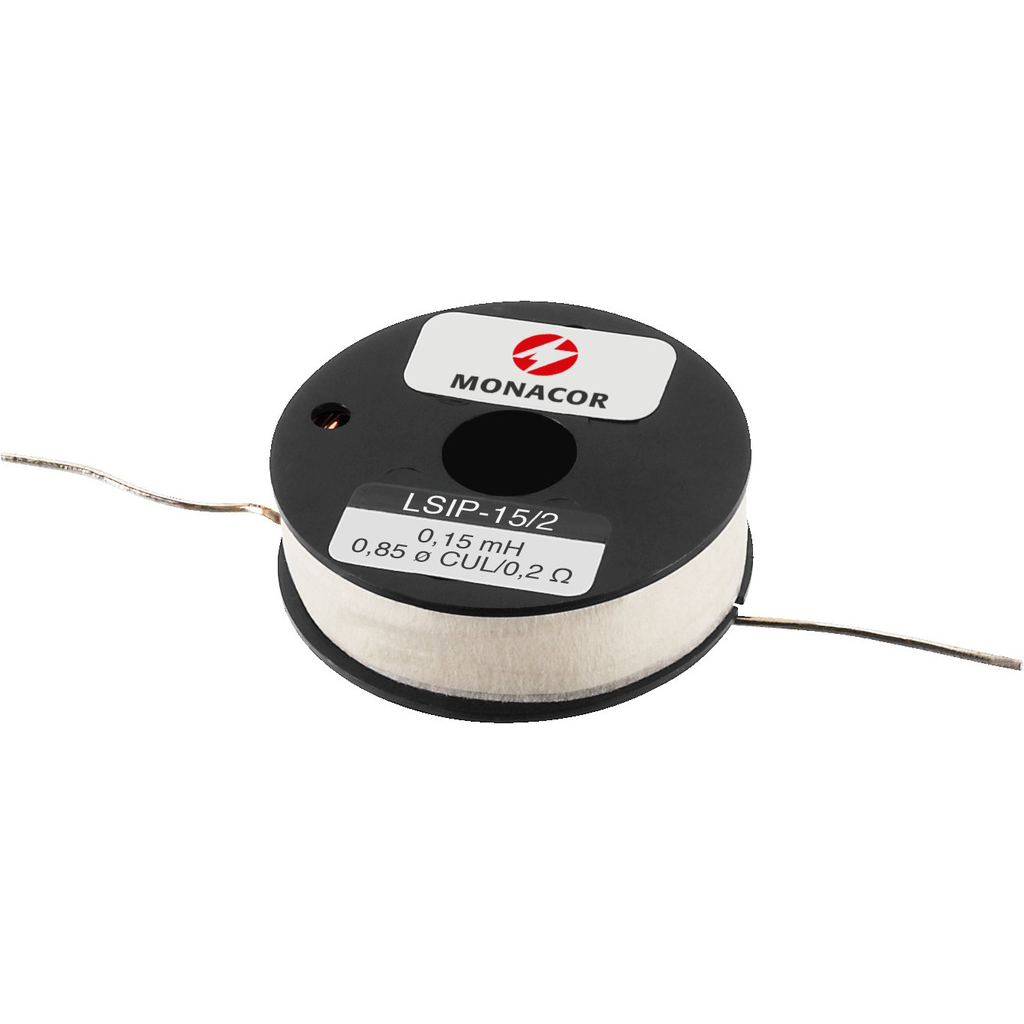

Monacor LSIP-15/2 Luftlindad Spole 0.15mH
Monacor LSIP-15/2 Luftlindad Spole 0.15mH
Ordinarie pris
75,00 SEK
Ordinarie pris
Försäljningspris
75,00 SEK
Skatter ingår.
Frakt beräknas i kassan.
Kvantitet
Det gick inte att ladda hämtningstillgänglighet
Air Core Coils
With 0.85 mm wire for constructing high-quality hi-fi crossover networks, also of very high quality as parallel coils.
Air core coils, from 0.1 to 3.9mH, wound on a plastic carrier, intended for professional crossover networks of high power for development and production. In a wire thickness from 0.85 to 1.2mm Ø CUL.
| TEKNISK DATA: | |
| Description | air core coil |
| Nominal value | 0.15 mH |
| Rated voltage | - |
| Power rating | 100 W |
| Frequency range | - |
| Housing | - |
| Colour/colour coding | - |
| Enam. copper wire
(CUL) |
Ø 0.85 mm |
| DC resistance | 0.2 Ω |
| Saturation current
(50 Hz) |
- |
| Primary | - |
| Secondary | - |
| Pin spacing | - |
| Packing unit | 1 |
| Dimensions | Ø 37 mm x 11 mm |
| Weight | 37 g |
| Pos. | - |
| Other features | - |
