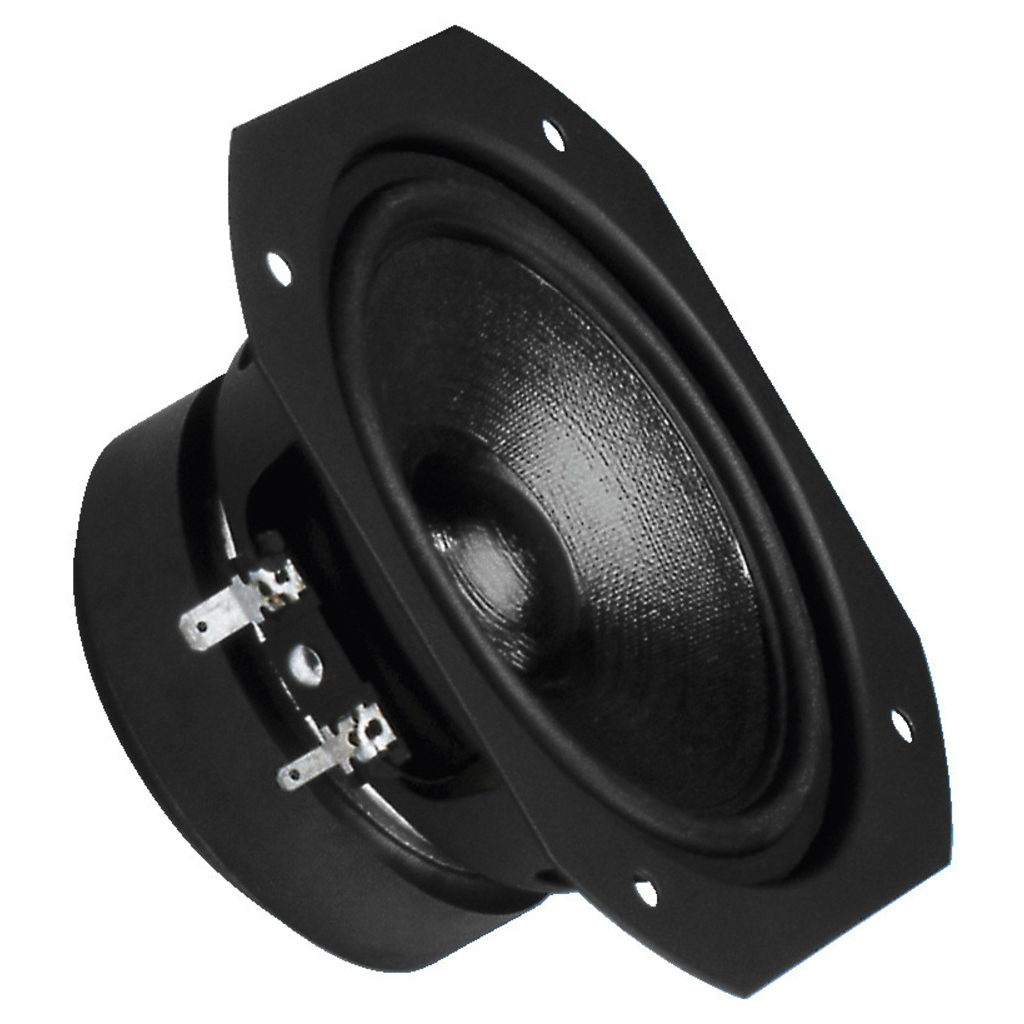

Monacor MSH-115 4'' Hifi mellanregisterhögtalare

Hi-fi midrange speaker, 120 W_MAX, 50 W_RMS, 8 ohm

• High-end technology matching the SPH-... series
• Coated special cone
• Dust cap with high damping
• Extra flat basket (does not have to be recessed!)
• Top linearity
• Perfect mass-drive ratio
• Wide bandwidth
• Hi-fi for highest requirements

  TEKNISK DATA:
  Impedance (Z)	8 Ω
  Transmission method	-

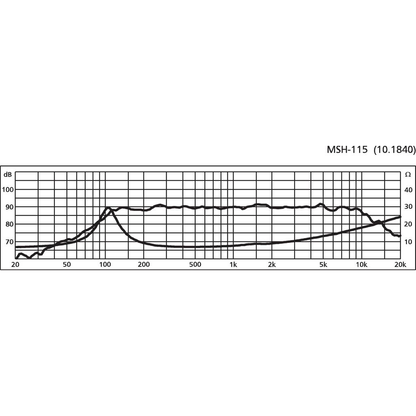

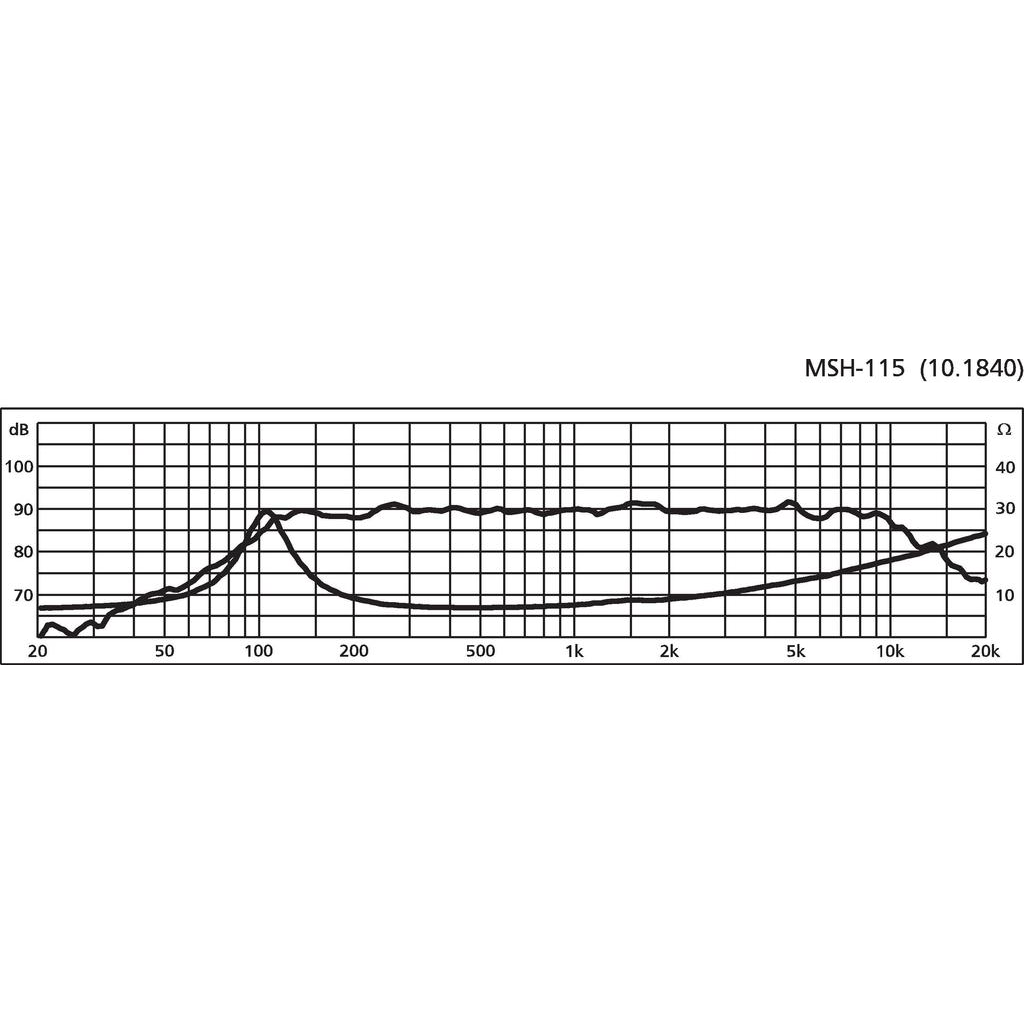

  Frequency range	fx-10,000 Hz
  Resonant frequency (fs)	85 Hz
  Rec. crossov. frequ. (fmax.) (12 dB/oct.)	300/5,000 Hz
  Power rating (RMS)	50 W
  Peak music power output (MAX)	120 W
  Sensitivity	89 dB/W/m
  Max. rated SPL	-
  Max. voltage	-
  Radiation angle, horizontal	-
  Radiation angle, vertical	-
  Suspension compl. (Cms)	0.8 mm/N
  Moving mass (Mms)	4.5 g
  Mech. Q factor (Qms)	1.98
  Electr. Q factor (Qes)	0.55
  Total Q factor (Qts)	0.43
  Equivalent volume (Vas)	4 l
  DC resistance (Re)	6.3 Ω
  Force factor (BxL)	4.80 Tm
  Voice coil induct. (Le)	0.3 mH
  Voice coil diameter	Ø 25 mm
  Voice coil former	aluminium
  Linear excursion (XMAX)	± 1.5 mm
  Eff. cone area (Sd)	55 cm2
  Magnet weight	230 g
  Magnet diameter	Ø 72 mm
  Mounting cutout	Ø 101 mm
  Mounting depth	54 mm
  Mounting hole diameter	-
  Hole spacing X-axis	-
  Hole spacing Y-axis	-

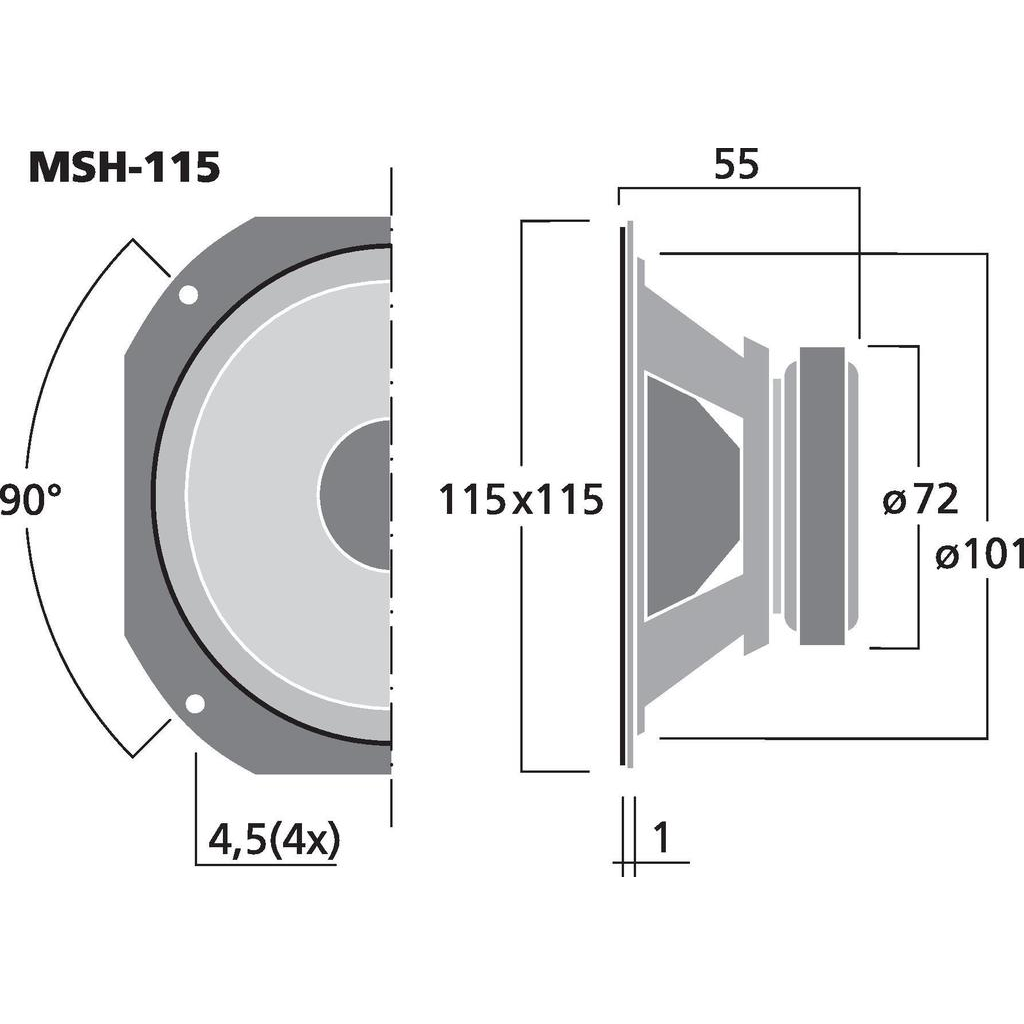

  Dimensions	115 x 115 x 55 mm
  Outside diameter	-
  Width	115 mm
  Height	115 mm
  Depth	55 mm
  Protective class	-
  Admiss. ambient temp.	0-40 °C
  Weight	0.56 kg
  Packing unit	1
  Type of speaker	4"
