Professional PA Speakers from IMG Stage Line
For years, they have been used efficiently in the top-class PA speaker systems from IMG Stage Line (500 series). The 30 cm and the 38 cm (12" and 15") bass speakers both provide a very clear sound and impress by a radiation with perfect attenuation up to the top midrange.

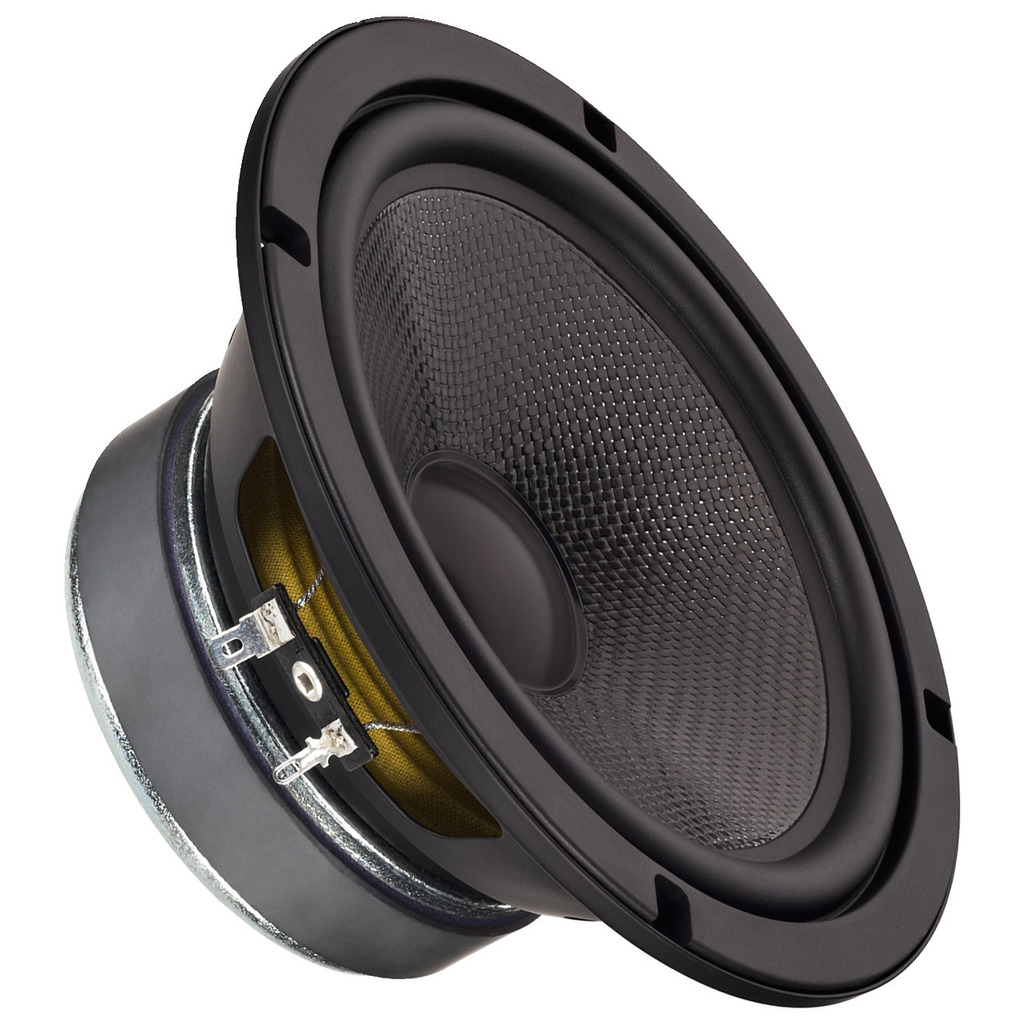

Miniature PA bass-midrange speaker, 150 WMAX, 100 WRMS, 4 ohm
- 16.5 cm (6.5") professional bass-midrange speaker for PA and hi-fi
- High-quality carbon fibre cone
- Excellent sound and dynamic characteristics
- Heat-resistant voice coil wound on the inside and outside
- Low frequency response and low distortion, but nevertheless of a high efficiency
- Very well-suited for the combination with the dome DT-300 and the waveguide WG-300
- Ideally suited for small PA systems and PA application in adjoining areas
- Proven to be very reliable in hi-fi, PA and monitor applications
HOBBY HiFi 05/2014
"A compact bass-midrange speaker of high power capability for smaller PA applications, e.g. providing a high-quality sound for bars and restaurants."
HOBBY HiFi 03/2014
"For a smooth bass reproduction and a clear midrange. The SP-6/100PRO provides an impressive sound with a very clean frequency response."
| TEKNISK DATA: | |
| Impedance (Z) | 4 ohm |
| Transmission method | - |

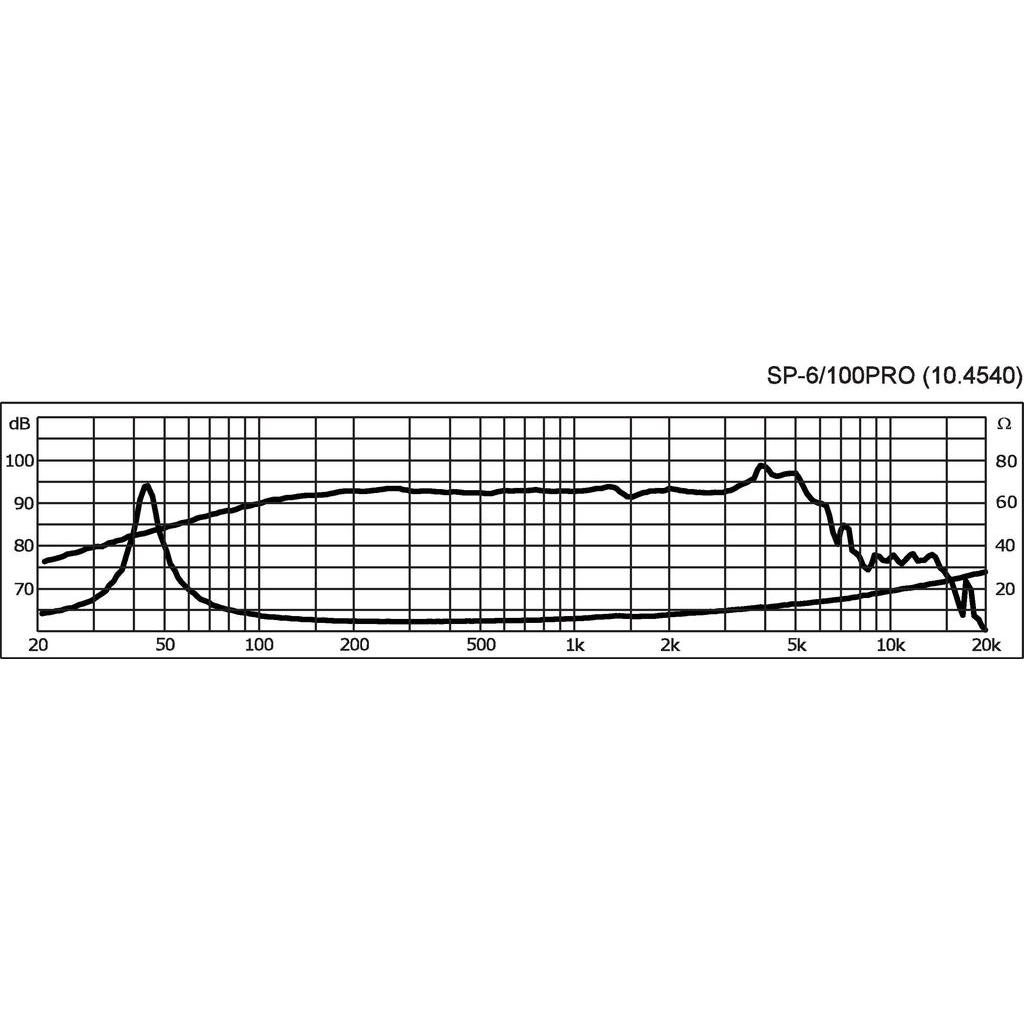

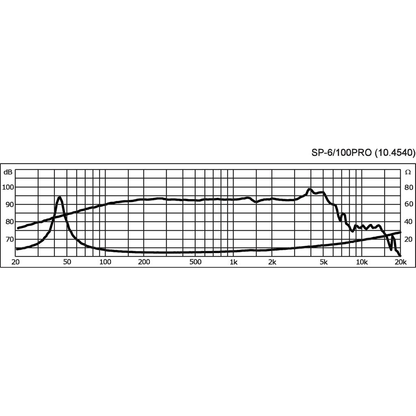

| Frequency range | f3-4,500 Hz |
| Resonant frequency (fs) | 44 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 150 W |
| Sensitivity | 93 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 1.08 mm/N |
| Moving mass (Mms) | 12.2 g |
| Mech. Q factor (Qms) | 5.52 |
| Electr. Q factor (Qes) | 0.29 |
| Total Q factor (Qts) | 0.27 |
| Equivalent volume (Vas) | 28 l |
| DC resistance (Re) | 3.3 ? |
| Force factor (BxL) | 6.22 Tm |
| Voice coil induct. (Le) | 0.4 mH |
| Voice coil diameter | Ø 30 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 3 mm |
| Eff. cone area (Sd) | 137 cm2 |
| Magnet weight | 570 g |
| Magnet diameter | Ø 100 mm |

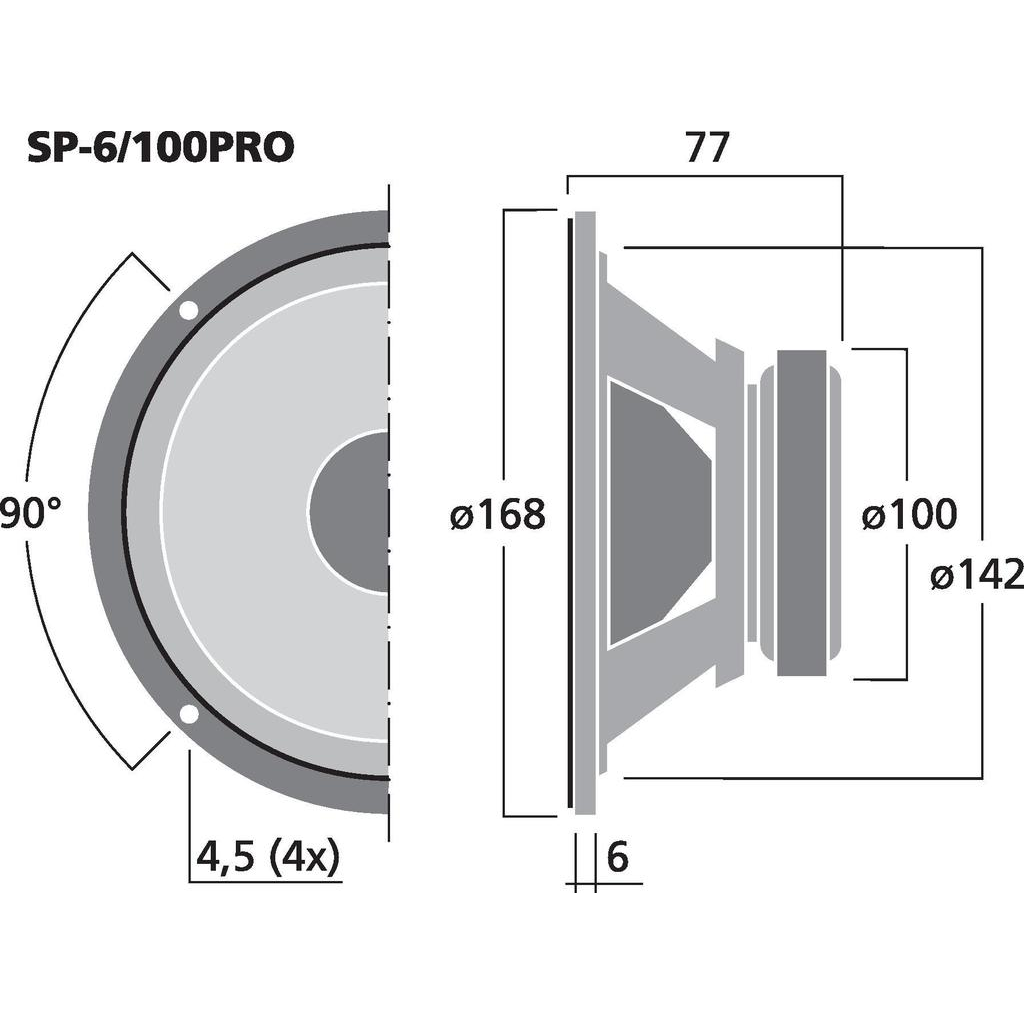

| Mounting cutout | Ø 142 mm |
| Mounting depth | 71 mm |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |
| Dimensions | Ø 168 mm x 77 mm |
| Outside diameter | Ø 168 mm |
| Width | Ø 168 mm |
| Height | - |
| Depth | 77 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.43 kg |
| Packing unit | 1 |
| Type of speaker | 6.5" |
