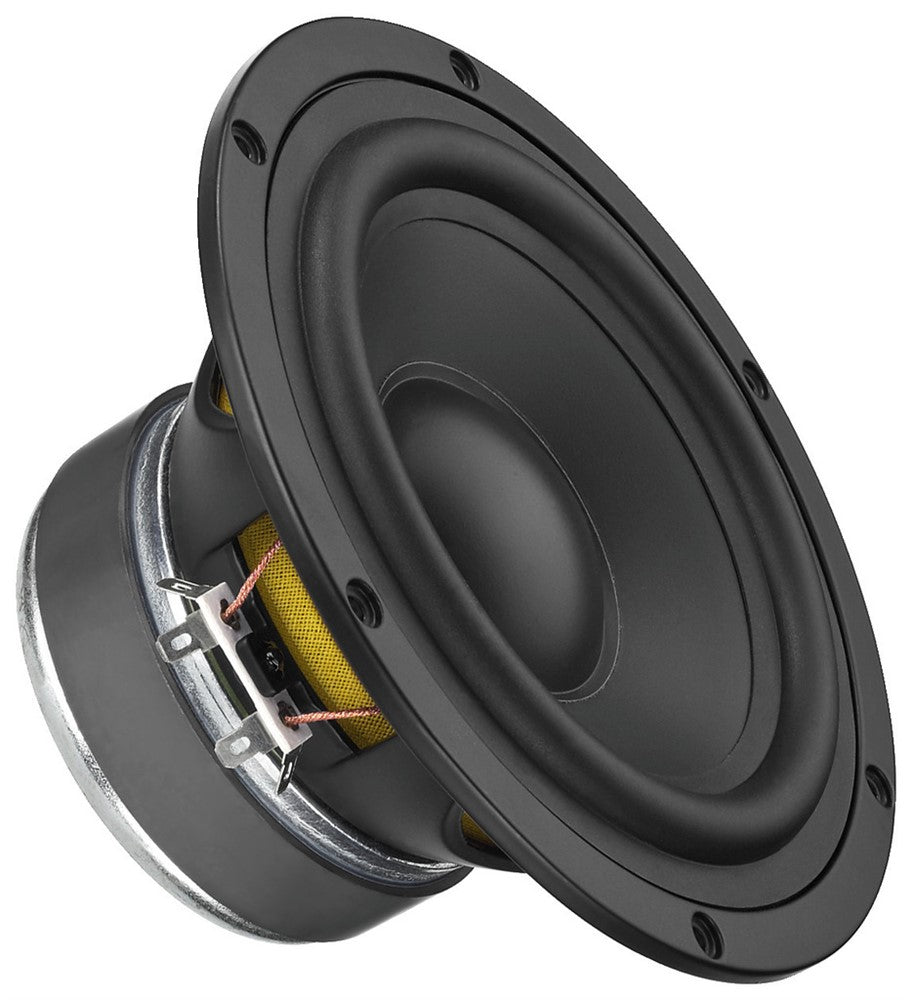

Hi-fi bass speaker, 120 WMax, 60 WRMS, 8 Ohm
- High-quality hi-fi bass speaker of long excursion
- Dampened low-resonance polypropylene cone
- Robust diecast aluminium basket of an elegant design with 6-hole screw connection
- Magnet system with drilled pole core and protruding rear pole plate
- Very well-suited for bass-reflex speaker systems
-
Klang+Ton 01/2014
"The 17 cm prolypropylene speaker provides a regular and very accurate signal reproduction."
(Together with DT-350NF in the Klang+Ton speaker building concept GT6)
HOBBY HiFi 02/2012
"Amazing bass speaker - neat workmanship, clever dimensioning. Creates an amazingly deep bass reproduction from a petite bookshelf speaker format (to 36 Hz)."

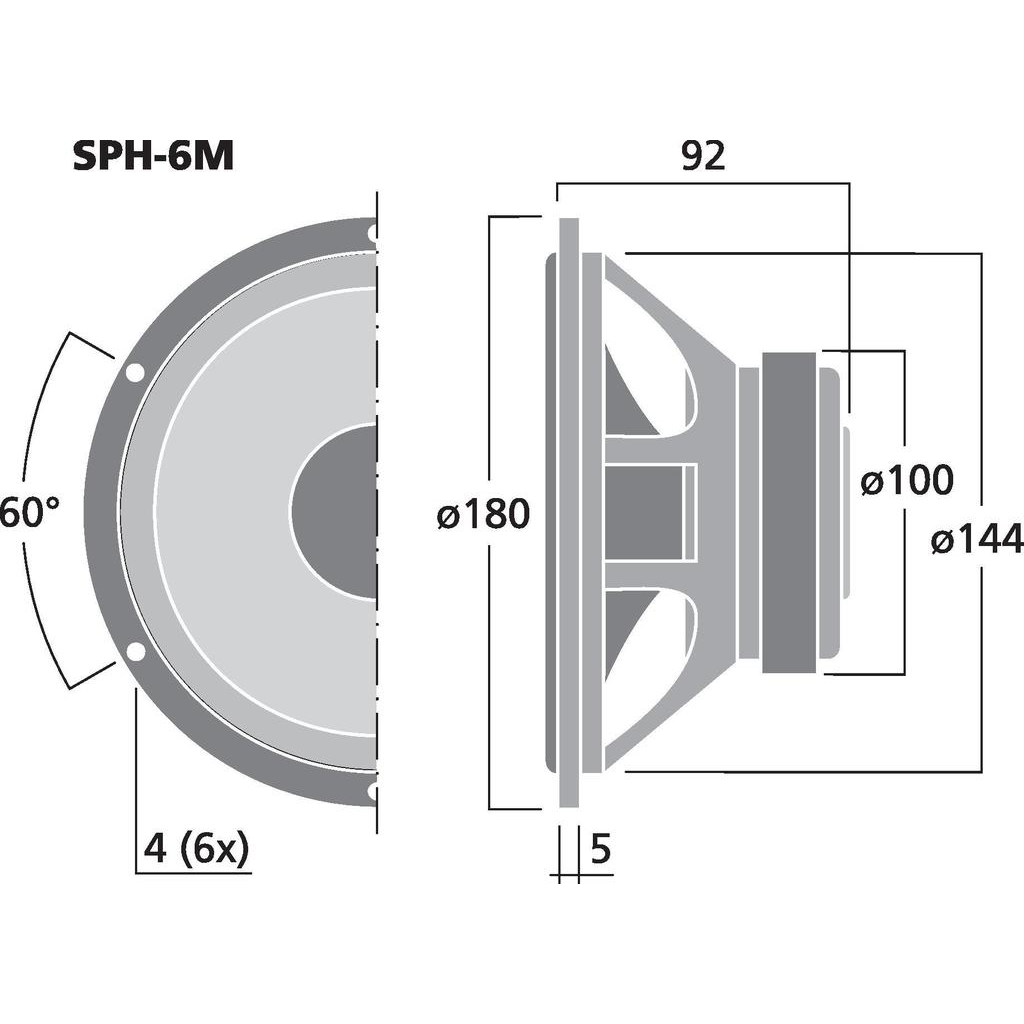

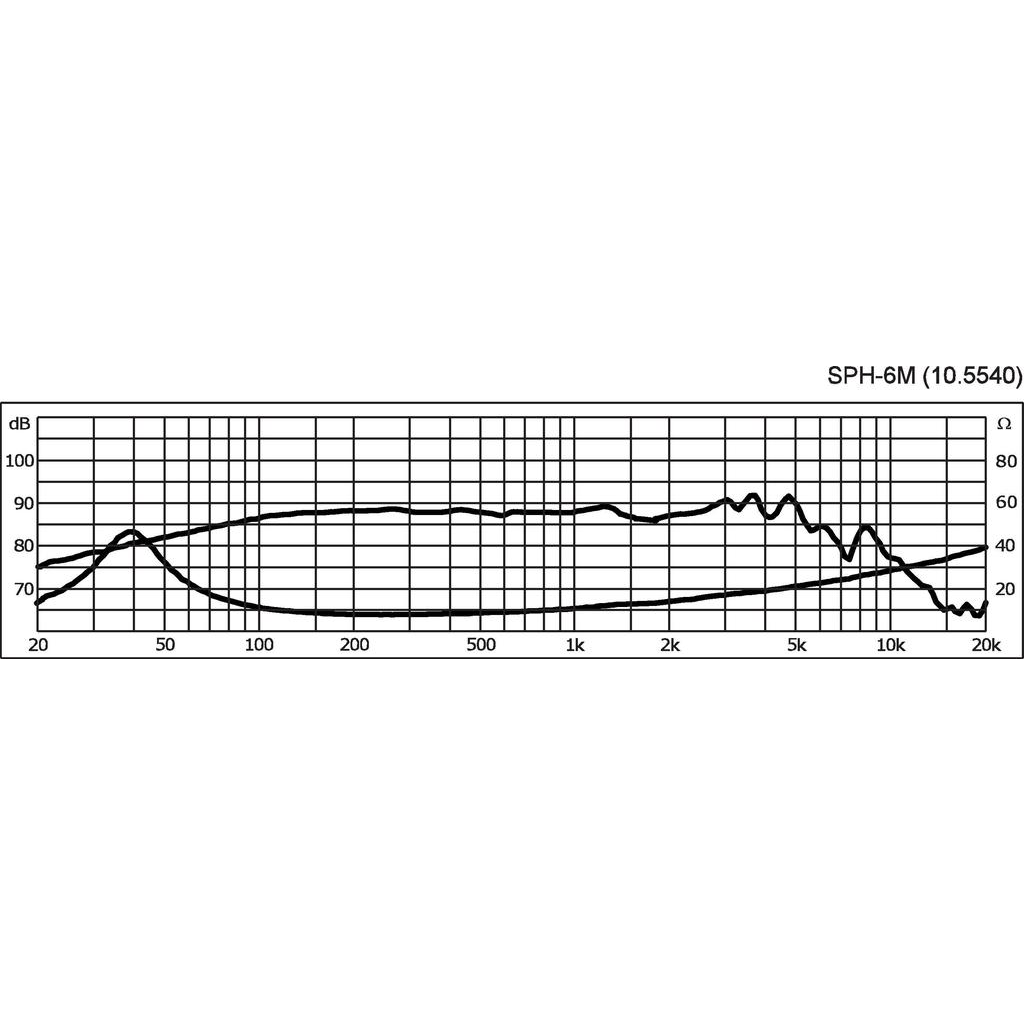

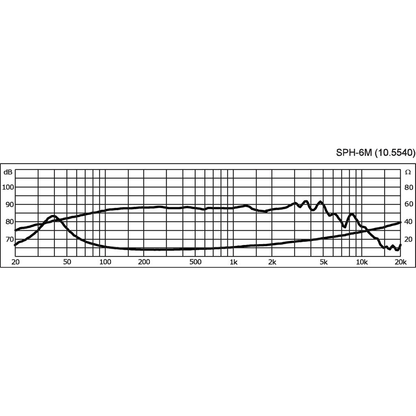

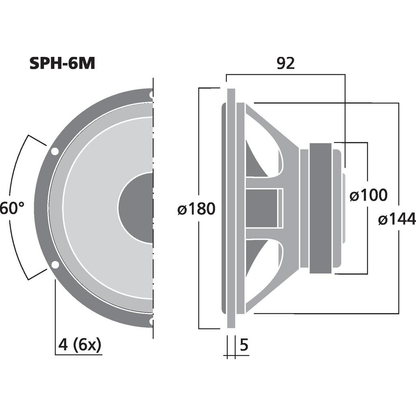

Impedance (Z) 8 Ohm Transmission method - Frequency range f3-3,000 Hz Resonant frequency (fs) 39 Hz Rec. crossov. frequ. (fmax.) (12 dB/oct.) - Power rating (RMS) 60 W Peak music power output (MAX) 120 W Sensitivity 88 dB/W/m Max. rated SPL - Max. voltage - Radiation angle, horizontal - Radiation angle, vertical - Suspension compl. (Cms) 0.78 mm/N Moving mass (Mms) 20 g Mech. Q factor (Qms) 2.26 Electr. Q factor (Qes) 0.35 Total Q factor (Qts) 0.30 Equivalent volume (Vas) 17.6 l DC resistance (Re) 6.33 O Force factor (BxL) 9.68 Tm Voice coil induct. (Le) 0.82 mH Voice coil diameter Ø 37 mm Voice coil former aluminium Linear excursion (XMAX) ± 4 mm Eff. cone area (Sd) 127 cm2 Magnet weight 630 g Magnet diameter Ø 100 mm Mounting cutout Ø 144 mm Mounting depth 87 mm Mounting hole diameter - Hole spacing X-axis - Hole spacing Y-axis - Dimensions Ø 180 mm x 92 mm Outside diameter Ø 180 mm Width Ø 180 mm Height - Depth 92 mm Protective class - Admiss. ambient temp. 0-40 °C Weight 2.005 kg Packing unit 1 Type of speaker 6.5"
